| 材质 | 天然橡胶 |
|---|---|
| 产地 | 河北 |
| 产品等级 | 一级 |
| 单位 | 米 |
| 规格 | B型300*6 |
| 厚度 | 6mm |
| 类型 | 止水带 |
| 形态 | 卷 |
| 形状 | 片状 |
| 用途 | 建筑 |
| 执行质量标准 | 国标 |
| 截面形状 | t型 |
| 品牌 | 瑞博 |
| 厂家(产地) | 河北 |

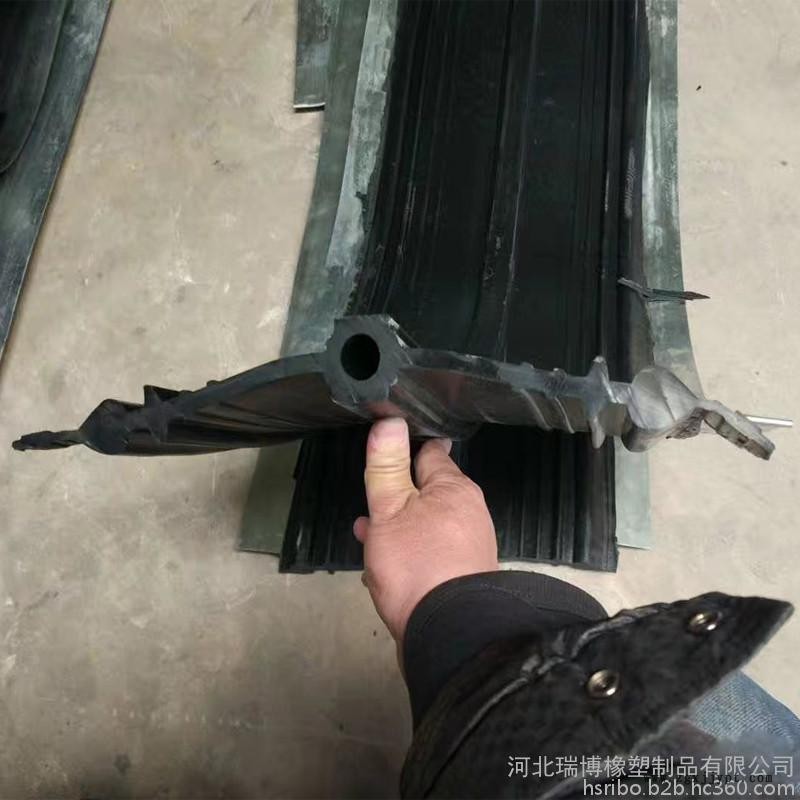

中埋式钢边氯丁橡胶止水带完全变形缝，是在后浇带等半完全缝形式上发展出来的一种较新型的变形缝模式，钢边氯丁橡胶止水带完全变形缝在防裂缝、防渗漏、抗错位、抗老化等方面较其它半完全缝有很大程度的提高。 福州洋里污水处理厂二期工程AAO生物反应池和二沉池设置了“二横三纵”式结构全断式柔性连接变形缝，结构主体自底板、池壁、顶板及渠道分为各自独立的12块单体，全段式柔性变形缝间均采用钢边氯丁橡胶止水带连接。
Buried steel edge chloroprene rubber waterstop complete deformation joint and post pouring belt is in semi sewn completely a new developed form of the joint deformation mode, steel edge chloroprene rubber waterstop completely in deformation joint anti crack, anti leakage and anti dislocation and aging than other half the complete joints has greatly improved. Fuzhou ocean sewage treatment plant project phase two AAO biological reaction tank and two tank **p "two vertical and three horizontal type structure full cut type flexible connection deformation joint, main structure from the bottom plate, the tank wall, roof and channels are divided into 12 single independent and intact flexible deformation between adopts steel edge chloroprene rubber waterstop connection.
2 特点
2 features

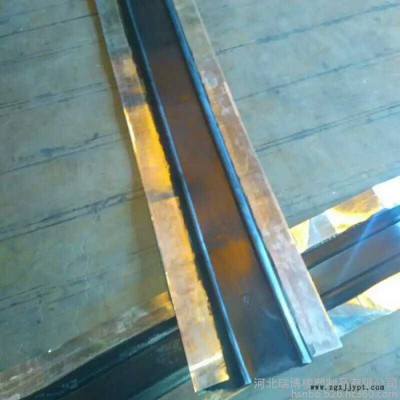

2.0.1 钢边氯丁橡胶止水带是在传统橡胶止水带基础上发展起来的一种新型材料，通过在橡胶止水带两翼设置两片钢片，可有效解决橡胶与混凝土热胀冷缩不同步的问题。
2.0.1 steel side chloroprene rubber sealing strip is a new material developed in the traditional rubber sealing belt on the basis of the rubber zhishuidai wings set two piece of steel, rubber and concrete can effectively solve the synchronization problem of expansion and contraction.
2.0.2 钢边氯丁橡胶止水带一般是与结构变形缝或引发缝一起设置的，它不仅可以达到止水的目的，还可以承受相邻板块约40mm以内的错位而不会出现拉裂，从而加强止水性能的发挥。
2.0.2 steel side chloroprene rubber waterstop structure is generally associated with deformation joints or lead joints set together, it can not only achieve the purpose of water stopping, can also withstand the adjacent plate within about 40mm dislocation without fracture, thereby enhancing the sealing performance of the play.
3 适用范围
3 scope of application
适用于各类蓄水构筑物的钢边氯丁橡胶止水带完全变形缝和橡胶止水带变形缝的施工，也可为其它形式的半完全变形缝施工提供参考。
The utility model is suitable for the construction of the full deformation joint of the steel chloroprene rubber sealing strip of the steel lining of various water storage structures and the deformation joint of the rubber water stopping belt, and also provides reference for other forms of semi complete deformation joint construction.
4 工艺原理
4 process principle
钢边氯丁橡胶止水带在大型蓄水池结构变形缝或引发缝起止水、隔水作用。施工时通过模板的夹持与定位钢筋的协同作用，保证钢边氯丁橡胶止水带处于设计的位置。底板中与池壁中的钢边氯丁橡胶止水带应连接成一个整体，接头处钢板间采用铆钉连接，橡胶采用热熔连接的方式。施工中被钢边氯丁橡胶止水带分隔开的区块必须错开施工，如先施工A区块，则与之相邻的B区块必须待A区块混凝土成型后方可进行（如图4.1示）。整体成型后，池内外的水**被钢边氯丁橡胶止水带相互阻隔开来
The chloroprene rubber sealing strip on the steel plate can stop water and prevent water from cracking in the large reservoir structure. During the construction, the joint of the formwork and the positioning steel bar is used to ensure that the neoprene waterproof belt on the steel edge is in the designed position. In the bottom plate and the steel wall in the tank wall, the neoprene water stop belt shall be connected into a whole, and the rivet joint shall be used between the steel plates at the joint, and the rubber shall be connected by hot melt connection. In the construction, the blocks separated by the steel neoprene belt must be staggered. If the A block is first constructed, the adjacent B block must be made before the concrete forming of the A block (shown in Figure 4.1). After the whole molding, the water inside and outside the tank is separated by the steel lining, neoprene and water stop
