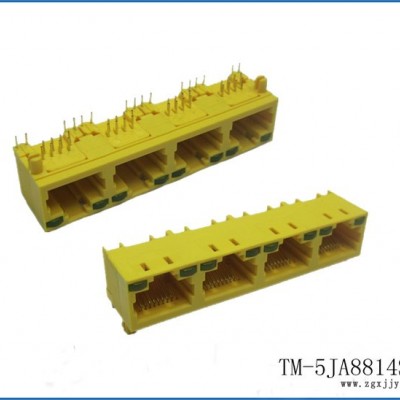

定制**RJ45连接器 全塑带LED PBT材质 RJ45 带变压器JACK商

价格:￥2.40/个
品牌:天睦
产地:广东
工作频率:高频
起订:2000个
供应:100000个
发货:12天内

立即购买

产地	广东
工作频率	高频
形状	矩形
应用范围	电脑设备
制作工艺	注塑
品牌	天睦
型号	RJ45连接器
加工定制	是

额定电流	1.5（A）	额定电压	125（V）
环境温度	-40℃~85℃（℃）	壳体材质	CU
导电体材质	CU	产品认证	UL

MATERIAL  1. HOUSING MATERIAL : GLASS FILLED PLYESTER UL94V-0PBT、NYLON2. HOUSING COLOR : BLACK OR OTHERS3. ConTACT MATERIAL : PHOSPHOR BRONZEφ0.46mm&t=0.35mm4. PLATING: ConTACT AREA-SELECTING GOLD  TAILS-150u" TIN-LEAD MIN OVER 50u" NICKEL5.SHIELD:0.23 THICKNESS BRASS WITH NICKEL PLATED6. LED: OPTION     SPECIFICATIONS ELECTRICAL1. INDUCTANCE AT 100mVDC BIAS: 350μ H MAX.2. C W/W(pF MAX):28 pF3. LEAKAGE INDUCTANCE AT 100KHz DC 100mV:0.3μ H MAX.4. INSULATION LOSS: 1.0dB MAX @1-80 MHz 1.2dB MAX @ 100 MHz5. RETURN LOSS: 14dB MIN @ 1-60 MHz 10dB MIN @ 60-100 MHz6. CROSS TALK: 35 dB MIN @ 1-80 MhzMECHANICAL1. MATING FORCE: 2.27 Kgf MAX2. DURABILITY: 750 CYCLES MIN3. PCB RETENTION PRE-SOLDER:1LB MINENVIRONMENTAL1. STORAGE :-40℃~85℃MATES WITH MODULAR PLUG ConFORMING TO FCC PART 68,SUBPART F. FEATUER1. RJ45 10/100 base-TX TRANSFORMER JACK WITH TRANSFORMER/IMPEDANCE RESISTOR/HIGH VOLTAGE CAPACITOR2. SIZE SAME AS RJ45 MODULAR JACK TO SAVE PCB BOARD SPACE3. REDUCE EMI RADIATION,IMPROVE EMI PERFORMANCE4. DESIGNED FOR NETWORK INTERFACE CARD APPLICATION5. DESIGNED TO MEET IEEE 802.3u REQUIREMENT6. DESIGHED FOR 100 base TRANSMISSION OVER UTP-5 CABLE7. OPERATION TEMPERATURE RANGE:0℃~70℃
