| 电线最大外径 | 2mm |
|---|---|
| 加工定制 | 是 |
| 绝缘材料 | PEEK |
| 温度范围 | 260 |
| 用途 | 核电 |
| 产地 | 深圳 |
| 每卷长度 | 100M |
| 保质期 | 36个月 |
| 标称截面 | 1 |
| 等级 | 优级品 |
| 电线外径 | 6 |
| 绝缘厚度 | 1 |
| 上市时间 | 2013年春 |
| 芯数 | NPC |
| 颜色 | 白色 |
| 扬程 | 100m |
| 护套材质 | PEEK |
| 线芯材质 | 其它 |
| 贸易属性 | 外贸+内贸 |
| 品牌 | 科普亚 |
| 型号 | CIT-CSR007 |
| 质量认证 | AAA |
本产品高温电线耐温-100℃——250℃，耐油、耐高压、耐强酸、强碱、耐各种有机溶剂、抗紫外线等。能在各种恶劣环境长期使用且不影响电线本身的性能，广泛适用于各电子电器、加热器、汽车、核能、船舶、传感器产业等高科技工业产品中。
核能防辐射PEEK电线电缆的详细描述：

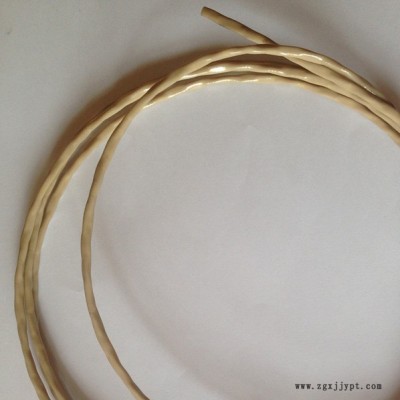

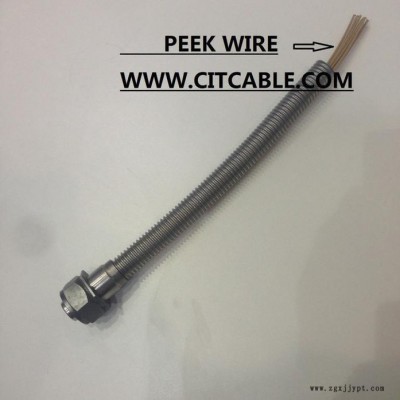

核能防辐射PEEK电线电缆
| PEEK WIRE CABLE FOR NUCLEAR 核能聚醚醚酮(PEEK)电线电缆 | |||||||
| 产品描述 PRODUCT DEION | |||||||
| 额定电压:300V ---20KV-DC | 温度范围:-65℃～+260℃ | ||||||
| Nominal: Voltage 300V ----- 20KV-DC | Temperature Range:-65℃～+260℃, -100℃for non-flex applications | ||||||
| 导体: 32-8AWG镍镀银或镀银铜线 | 绝缘体：聚醚醚酮? | ||||||
| Conductor:32-8AWG Nickel plating Silver | Insulator:Polyetheretherketone (PEEK) | ||||||
| 颜色/Colours:黑/本色 Black,Transparent and others | |||||||
| 特性：机械特性、耐疲劳性、耐高温、耐酸、碱、油、阻燃、耐γ辐照的能力很强(109 Rad)。 | |||||||
| Charcteristic: PEEK cable outstanding and excellent abrasion resistance 、dielectric strength ,chemical resistance、thermal endurance in long、protects against corrosion、Radiation Resistance 109Rad = 107Gy、 Amorphous or crystalline PEEK Wire Cable available、Various types Conductor of silver and nickel-plated wire as well as custom wire types | |||||||
| 适用范围： 用于核能HV防辐射安全、 核电地热电线、设备用电线、核电自动化仪表设备电线、核电控制器用电线、核电热电偶电线、核电电阻电线、核电汽轮发电机定子绕组铁芯测温电线、核电温度传感电线等引出连接线 | |||||||
| Applications: PolyEtherEtherKetone (PEEK) Cable for H.V. Radiation with Nuclear Safety 、Heating wire for Nuclear Hook Up Wire for Control panels for Nuclear Application、Nuclear steam generator systems、Lead Wire for Electrical Penetration Assembly、Wire Harness Assembly for Nuclear Application. | |||||||
| 导体/Conductor | 绝缘体/Insulator | 电气特性/Electrical Characteristic | 备注Remark | ||||
| 线号 AWG | 导体构造 Conductor construction NO×Φmm | 直径 Diameter mm | 绝缘厚度 Insulator Thick mm | 完成外径 Over Diameter mm | 导体电阻 Realst.max Cuc.c 20℃ohm/km | 允载电流 Permissiblle ampacity 20℃-AMR | Conductor Material |
| PEEK Wire Cable For H.V. Radiation Safety Applications 核能HV防辐射安全应用 | |||||||
| 22 with Braided | 19×0.16 | 0.80 | 0.70 | 2.20 | 56.40 | 8.51 | Nickel Plating Copper |

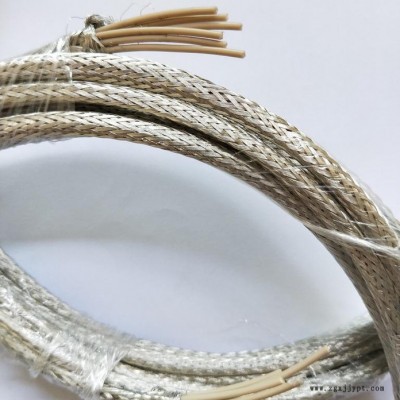

| 22+22 with Double Shield AISI 304 Braided | 19×0.16 | 0.80 | 0.70 | 2.20 | 56.40 | 8.51 | Nickel Plating Copper |
| 19×0.16 | 0.80 | 0.25 | 1.30 | ||||
| PEEK Wire Cable For Nuclear Superior Performance Applications 核能行业应用 | |||||||
| 15 | 1×1.40 | 1.40 | 0.30 | 2.00 | 11.50 | 17.8 | Solid Bare Copper |
| 20 | 19×0.20 | 1.05 | 0.35 | 1.75 | 34.60 | 6.94 | Silver Plating Copper |
| 24*4C with Braided | 7×0.20 | 0.61 | 0.15 | 0.91 | 93.25 | 2.57 | Silver Plating Copper |
| 26*2C | 1×0.46 | 0.46 | 0.20 | 0.86 | 148.94 | 1.61 | KN/KP |
| 26*6C with Braided | 7×0.15 | 0.46 | 0.20 | 0.86 | 148.94 | 1.61 | Pure Nickel |
| CITCABLE will custom manufacture this radiation resistant wire for precise reuqiremnts of your project,All Nuclear PEEK Wire Cable are custom ordered. Wall thicknesses available from 0.05 mm-0.40 mm depending on the conductor size and cable construction . 我们热诚欢迎各行各业定制各种特殊规格的PEEK核能电线电缆 | |||||||
