| 壁厚 | 3.5 |
|---|---|
| 长度 | 50/100 |
| 工作压力 | 2 |
| 公称外径 | 8-250 |
| 用途 | 排水管 |
| 种类 | pvc软管 |
| 品牌 | 祥晟 鸿晟 |
本产品是工业、农业和工程上抽吸输送水、油、粉料的理想管材。

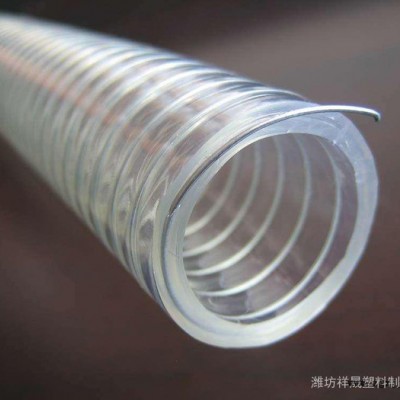

本产品为内嵌钢丝骨架的pvc软管，该产品质轻、透明、耐候性佳，弯曲半径小，乃负压能力好。在真空及高压状态下能保持原形。可在管面增加标志线，更加美观。
适用温度：-5℃-65℃
联系人：刘小姐
15006655792
lengdiemiss@163.com
|
|
|
|
|
|
| B.P(mpa) | |
size | I.D(mm) | O.D(mm) | thickness | kg/m | m/kg | W.P(mpa) | At23℃ | At60℃ |
5/16 | 8 | 13 | 2.5 | 0.124 | 8.03 | -0.1~1.1 | 3.3 | 1.6 |
3/8 | 9 | 15 | 3 | 0.171 | 5.86 | -0.1~1.1 | 3.3 | 1.5 |
1/2 | 12 | 18 | 3 | 0.213 | 4.69 | -0.1~1.0 | 3 | 1.5 |
5/8 | 15 | 22 | 3.5 | 0.307 | 3.26 | -0.1~1.1 | 3 | 1.3 |
3/4 | 19 | 26 | 3.5 | 0.373 | 2.68 | -0.1~1.1 | 3 | 1.2 |
1" | 25 | 33 | 4 | 0.550 | 1.82 | -0.1~0.7 | 2.5 | 1 |
1-1/4 | 32 | 41 | 4.5 | 0.779 | 1.28 | -0.1~0.7 | 2 | 0.9 |
1-1/2 | 38 | 48 | 5 | 1.019 | 0.98 | -0.1~0.6 | 1.8 | 0.8 |
1-3/4 | 45 | 56 | 5.5 | 1.317 | 0.76 | -0.1~0.6 | 1.7 | 0.8 |
1-7/8 | 48 | 59 | 5.5 | 1.395 | 0.72 | -0.1~0.5 | 1.6 | 0.7 |
2" | 50 | 62 | 6 | 1.593 | 0.63 | -0.1~0.5 | 1.6 | 0.7 |
2-3/8 | 60 | 74 | 7 | 2.224 | 0.45 | -0.1~0.5 | 1.5 | 0.7 |
2-1/2 | 63 | 80 | 8.5 | 2.882 | 0.35 | -0.1~0.5 | 1.5 | 0.5 |
3" | 75 | 92 | 8.5 | 3.365 | 0.30 | -0.1~0.4 | 1.3 | 0.5 |
3-1/2 | 90 | 108 | 9 | 4.225 | 0.24 | -0.1~0.4 | 1.2 | 0.5 |
4" | 100 | 118 | 9 | 4.651 | 0.21 | -0.1~0.3 | 1 | 0.5 |
5" | 127 | 143 | 8 | 5.121 | 0.20 | -0.1~0.3 | 1 | 0.5 |
6" | 152 | 168 | 8 | 6.069 | 0.16 | -0.1~0.3 | 1 | 0.5 |
8" | 200 | 220 | 10 | 9.957 | 0.10 | -0.1~0.3 | 1 | 0.5 |
