| 加工定制 : | 否 | 类型 : | 塑料模架 |
| 品牌 : | progressive | 型号 : | PROGRESSIV密封圈 |
| 产品别名 : | 喷嘴偏置塞扳手 |

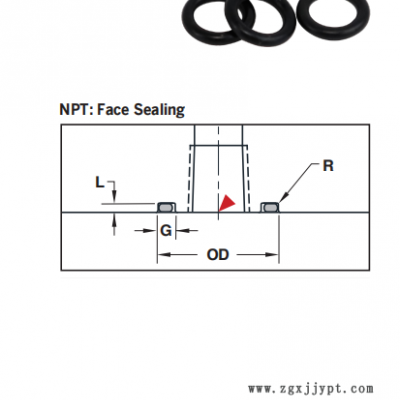

Dash Number | Cross Section | g | l | r |
-013 | .101 | .050 | .005 | |
through | 1/16 | to | to | to |
-025 | .107 | .054 | .015 | |
-112 | .136 | .074 | .005 | |
through | 3/32 | to | to | to |
-124 | .142 | .080 | .015 |
Technical Information:
• Buna-N temperature range is -20° F to 225 °F (-28°C to 107°C)
• Viton® temperature range is -0° F to 400°F (-17°C to 204°C)
drill line catalog number od diameter buna-n viton | |||
Ø.25 (1/4) | OR-013 | OR-013-V | .566 |
OR-112 | OR-112-V | .693 | |
Ø.312 (5/16) | OR-014 | OR-014-V | .629 |
OR-113 | OR-113-V | .755 | |
Ø.375 (3/8) | OR-015 | OR-015-V | .691 |
OR-114 | OR-114-V | .818 | |
Ø.421 (27/64) | OR-016 | OR-016-V | .754 |
OR-114 | OR-114-V | .818 | |
Ø.437 (7/16) | OR-017 | OR-017-V | .816 |
OR-115 | OR-115-V | .880 | |
Ø.500 (7/16) | OR-018 | OR-018-V | .879 |
OR-116 | OR-116-V | .943 | |
Ø.562 (9/16) | OR-019 | OR-019-V | 0.941 |
OR-117 | OR-117-V | 1.005 | |
Ø.687 (11/16) | OR-020 | OR-020-V | 1.066 |
OR-119 | OR-119-V | 1.130 | |
Ø.906 (29/32) | OR-024 | OR-024-V | 1.254 |
OR-123 | OR-123-V | 1.380 | |
Ø.937 (15/16) | OR-025 | OR-025-V | 1.316 |
OR-124 | OR-124-V | 1.443 | |
npt catalog number od buna-n viton | |||
1/16 | OR-015 | OR-015-V | .691 |
OR-113 | OR-113-V | .755 | |
1/8 | OR-016 | OR-016-V | .754 |
OR-114 | OR-114-V | .818 | |
1/4 | OR-018 | OR-018-V | .879 |
OR-116 | OR-116-V | .943 | |
3/8 | OR-020 | OR-020-V | 1.004 |
OR-118 | OR-118-V | 1.068 | |
1/2 | OR-023 | OR-023-V | 1.191 |
OR-122 | OR-122-V | 1.318 | |
3/4 | OR-026 | OR-026-V | 1.379 |
OR-125 | OR-125-V | 1.505 | |
