| 颜色 | 红-黑-蓝-棕-黄-绿-橙-灰-白-黄绿等 |
|---|---|
| 产地 | 广东 |
| 品牌 | 顺泰 |
| 型号 | RV |
| 加工定制 | 是 |

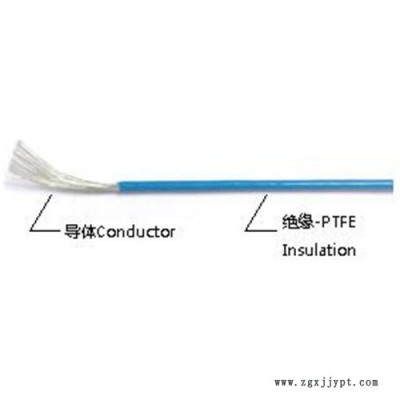

| 铁氟龙聚全氟乙丙烯高温电线 | |||||||||||
| Single-Conductor, Tefulon Insulated Wire | |||||||||||
| 产品描述 PRODUCT DEION | |||||||||||
| 额定电压Nominal Voltage:600V | |||||||||||
| 温度范围Temperature Range:-60℃～+200℃ | |||||||||||
| 导体Conductor:30～10AWG Tinned | |||||||||||
| 绝缘体Insulation:FEP | |||||||||||
| 颜色:红-黑-蓝-棕-黄-绿-橙-灰-白-黄绿等 | |||||||||||
| Colour: Red-Black-Blue-Brown-Yellow-Green-Orange-Gray-White-Yellow/Green,etc. | |||||||||||
| 适用范围APPLICATION | |||||||||||
| 适用于家用电器,新能源汽车,照明灯具,电子设备,温度传感器,航天航空,军工产品,冶金化工,通讯,汽车船舶,电力安装等连接. | |||||||||||
| Applies to household appliances, new energy vehicles, lighting lamps and lanterns, electronic equipment, temperature sensor, aerospace, military products, metallurgical chemical industry, communication, car shipping, electrical installation and other connections. | |||||||||||
| 导体 Conductor | 绝缘体 Insulation | 电气特性 Elecrical Characteristic | 包装 Packing | ||||||||
| AWG | 导体结构 No.xΦmm | 绞合 外径 mm | 绝缘 厚度 mm | 外径 OD | 导体 电阻 Ω/10ft | 耐电压 Dielectric Strength AC 1 min | 米/卷 Mt/coils | ||||
| 12 | 19 | X | 0.47 | 2.35 | 0.51 | 3.35 | 5.64 | 2000V | 305/610 | ||
| 14 | 19 | X | 0.37 | 1.85 | 0.51 | 2.85 | 8.96 | ||||
| 16 | 19 | X | 0.30 | 1.50 | 0.51 | 2.50 | 14.6 | ||||
| 18 | 7 | X | 0.39 | 1.17 | 0.51 | 2.20 | 23.2 | ||||
| 19 | X | 0.235 | 1.18 | 0.51 | 2.20 | ||||||
| 20 | 7 | X | 0.32 | 0.96 | 0.51 | 1.95 | 36.7 | ||||
| 19 | X | 0.19 | 0.95 | 0.51 | 1.95 | ||||||
| 22 | 7 | X | 0.25 | 0.75 | 0.51 | 1.75 | 59.4 | ||||
| 19 | X | 0.15 | 0.75 | 0.51 | 1.75 | ||||||
| 24 | 7 | X | 0.20 | 0.60 | 0.51 | 1.60 | 94.2 | ||||
| 19 | X | 0.12 | 0.60 | 0.51 | 1.60 | ||||||
| 26 | 7 | X | 0.16 | 0.48 | 0.51 | 1.50 | 150 | ||||
| 19 | X | 0.10 | 0.50 | 0.51 | 1.50 | ||||||
| 28 | 7 | X | 0.12 | 0.36 | 0.51 | 1.40 | 239 | ||||
| 19 | X | 0.08 | 0.40 | 0.51 | 1.40 | ||||||
| 30 | 1 | X | 0.254 | 0.25 | 0.51 | 1.30 | 381 | ||||
| 7 | X | 0.10 | 0.30 | 0.51 | 1.30 | ||||||
| 备注:上表中导体材质为镀锡铜,可以根据客户要求采用不同导体结构及导体材质. | |||||||||||
| Note: conductor material is TS, can be made of different conductor structure and material according to requirements. | |||||||||||
| | |||||||||||
